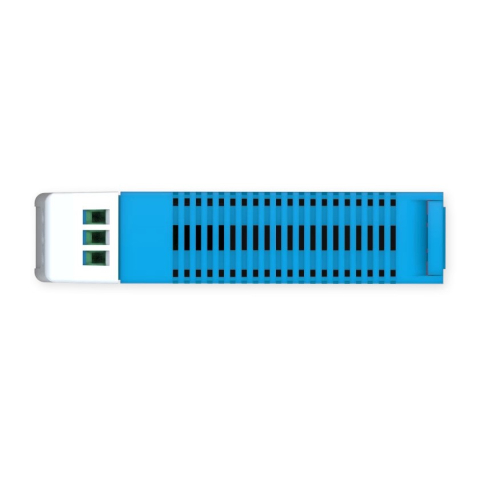

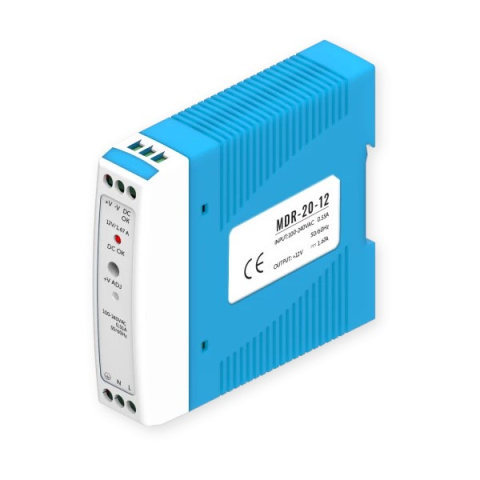

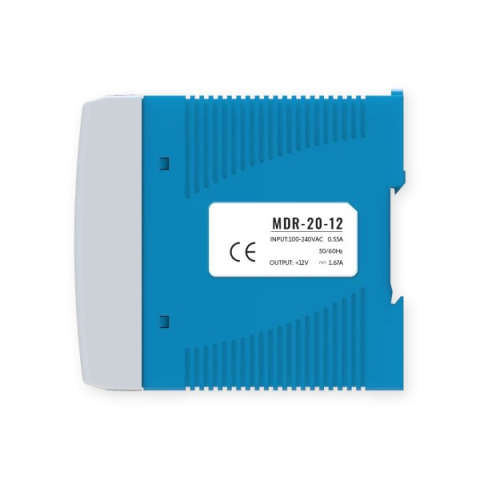

PR3PDNP0 - это источник питания в формате DIN рейки для маршрутизаторов Teltonika. Список совместимых устройств: RUT200, RUT241, RUT901, RUT951, RUT956, TCR100, RUT300, RUT360, RUTX08, RUTX09, RUTX10, RUTX11, RUTX12, RUTX14, RUTX50, RUTXR1, TRB140, TRB141, TRB142, TRB143, TRB145, TRB245, TRB255, TRB500, TSW010, TSW304.
- Защита от перегрузки: 105 % ~ 160 % отключение выхода, автоматическое восстановление
- Пусковой ток: Ток холодного пуска 20 A/ 115 В переменного тока; 40 A/ 230 В переменного тока
- Защита от перенапряжения: 120 % ~ 140 % отключение выходного напряжения, для восстановления требуется цикл выключения/включения
- Выдерживаемое напряжение: I/P-O/P: 1,5 кВ; I/P-FG: 1,5 кВ; O/P-FG: 0,5 кВ 1 минута
- Сопротивление изоляции: I/P-O/P I/P-FG O/P-FG: 500 VDC/ 1000 MΩ
Технические характеристики / Спецификация
